estimated malfunction rate is less than 2,000,000 operations
D2SW-P
● Using Micro Loads
? Using a model for ordinary loads to open or close the contact
of a micro load circuit may result in faulty contact. Use models
that operate in the following range. However, even when using
micro load models within the following operating range, if
inrush current occurs when the contact is opened or closed, it
may increase the contact wear and so decrease durability.
Therefore, insert a contact protection circuit where necessary.
The N-level reference value applies for the minimum
applicable load.This value indicates the malfunction reference
level for the reliability level of 60% ( λ 60 ). (JIS C5003)
The equation λ 60 =0.5×10 -6 /operations indicates that the
1
with a reliability level of 60%.
Sealed Subminiature Basic Switch
30
0.16 mA
26 mA
1 00 mA
24

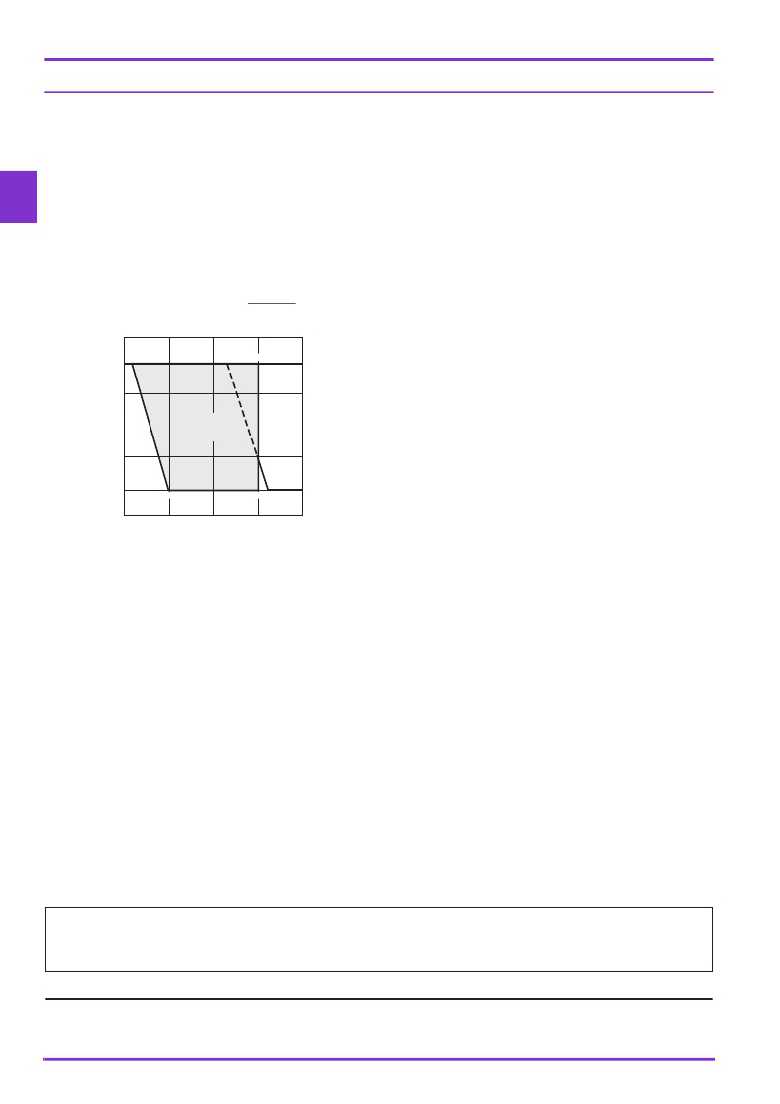

Operating range for
micro load models
D2SW-P01
Operating
range for
general-load
models
D2SW-P2
12
5
0
1 mA
100 mA 160 mA
0.1
1
10
100
1,000
Current (mA)
? Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety before using the product.
? Consult your OMRON representative before using the product under conditions which are not described in the manual or applying the product to nuclear control systems, railroad
systems, aviation systems, vehicles, combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious
influence on lives and property if used improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or
equipment, and be sure to provide the system or equipment with double safety mechanisms.
Note: Do not use this document to operate the Unit.
OMRON Corporation
ELECTRONIC AND MECHANICAL COMPONENTS COMPANY
Contact: www.omron.com/ecb
Cat. No. B109-E1-04
0812(0207)(O)
6
